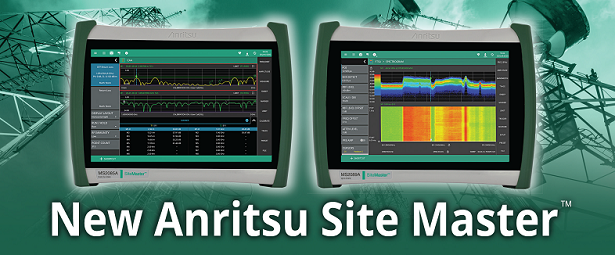

Anritsu Site Master™ MS2085A MS2089A
A New Era in Field Testing for Diverse Applications

Anritsu is proud to introduce its eighth-generation compact handheld cable and antenna analyzer with spectrum analyzer for installation and maintenance of wireless networks. With frequency coverage up to 6 GHz, the new Site Master MS2085A/89A completely redefines the standards for portable handheld analyzers, setting another new industry benchmark for performance and accuracy. They feature the highest performance and the most capabilities ever offered by Anritsu in a compact handheld tester since introducing its first line sweeper in 1995.

Key features include both traditional swept and real-time spectrum analysis capabilities, IQ capture and streaming, and built-in PDF report generation. The new MS2085A/89A is the culmination of over 60 years of microwave test and measurement equipment development, using the very latest technologies to deliver accuracy and precision in measurements previously reserved only for benchtop instruments.

Cable and Antenna Analyzer Highlights
    The MS2085A is a 5 kHz to 4,6 GHz cable antenna analyzer that weighs less than 7 lbs. with an IK08 10-inch touch screen.
  • Built-in PDF/HTML report generation
  • Ability to add/edit/import and export a cable list from the instrument
  • TDR measurements
  • Sweep Speed: 350 µs / data point in fast sweep mode
  • Data Points: 10,049

Spectrum and Interference Analyzer Highlights
The MS2089A comes in two configurations. The first configuration is a 5 kHz to 4 GHz cable antenna analyzer with a 9 kHz to 4 GHz spectrum analyzer. The second configuration is a 5 kHz to 6 GHz cable antenna analyzer with a 9 kHz to 6 GHz spectrum analyzer. The MS2089A weighs less than 8.5 lbs. and has the same IK08 10-inch touch screen.
  • IQ capture/Streaming
  • Real-Time Spectrum Analyzer (RTSA)
  • LTE FDD/TDD Analyzer
  • 5GNR FR1 Analyzer
  • Interference Analyzer

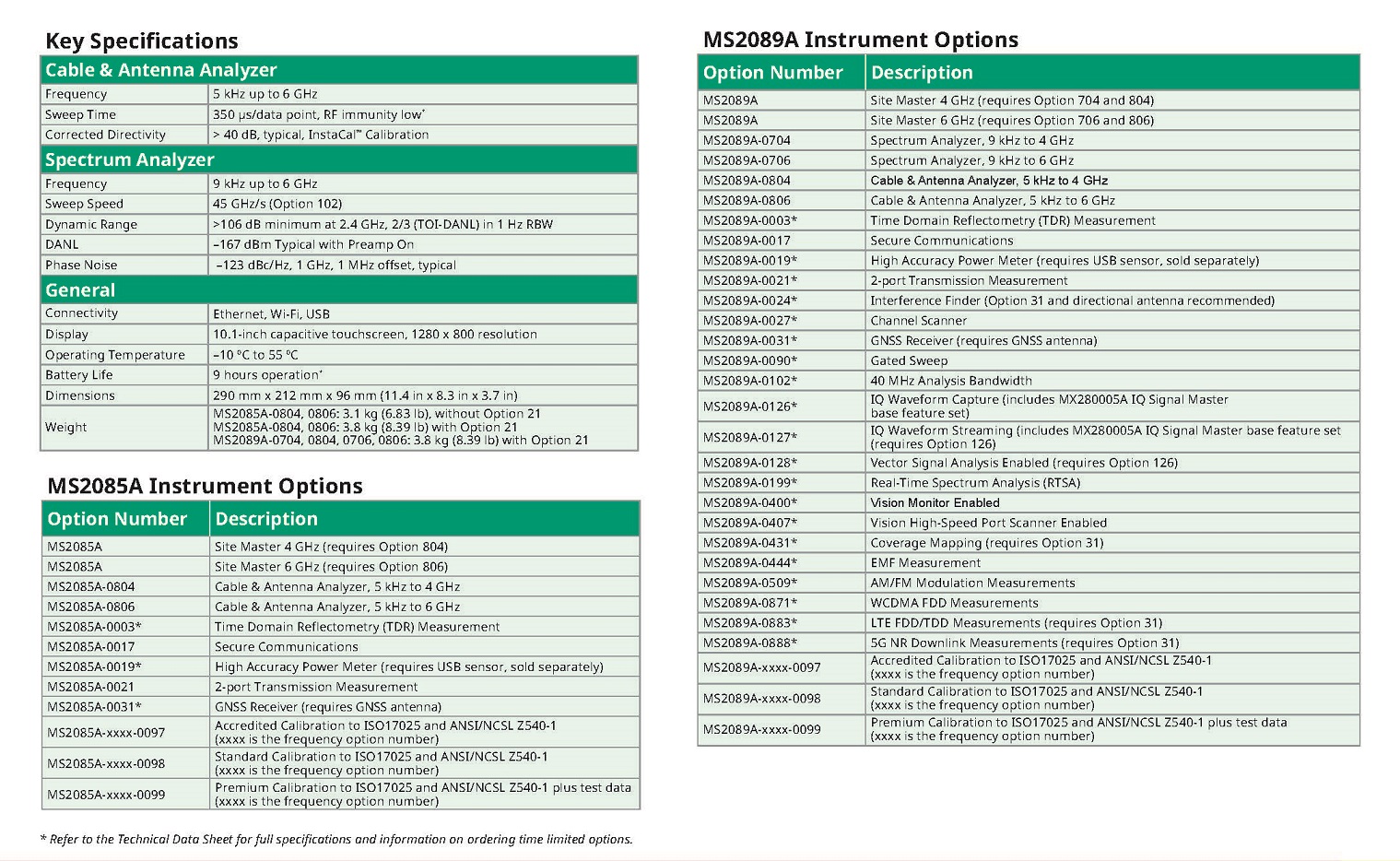

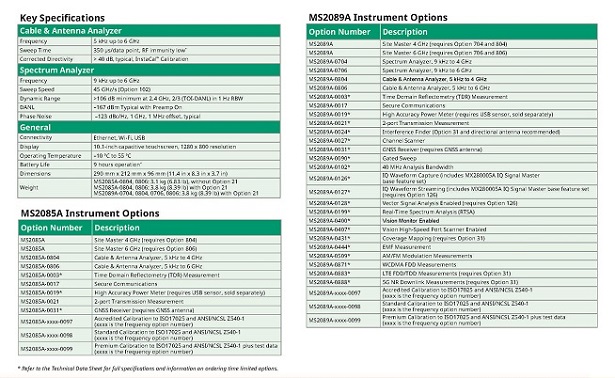

Learn more about the new Anritsu Site Master series from this product brochure. Click on the image below for quick facts on the MS2085A and MS2089A.
